Eigenschaften
| Min./max. Betriebstemperatur (°C) | -196 / +200 |
| Produkt | gelöteter Wärmetauscher |
| Anzahl Platten | 70 |
| Anschlüsse | DN100 |
| Maximaler Betriebsdruck | 30 Bar |
| Typ | PB88H |
| Gewicht (kg) | 109.7 kg |

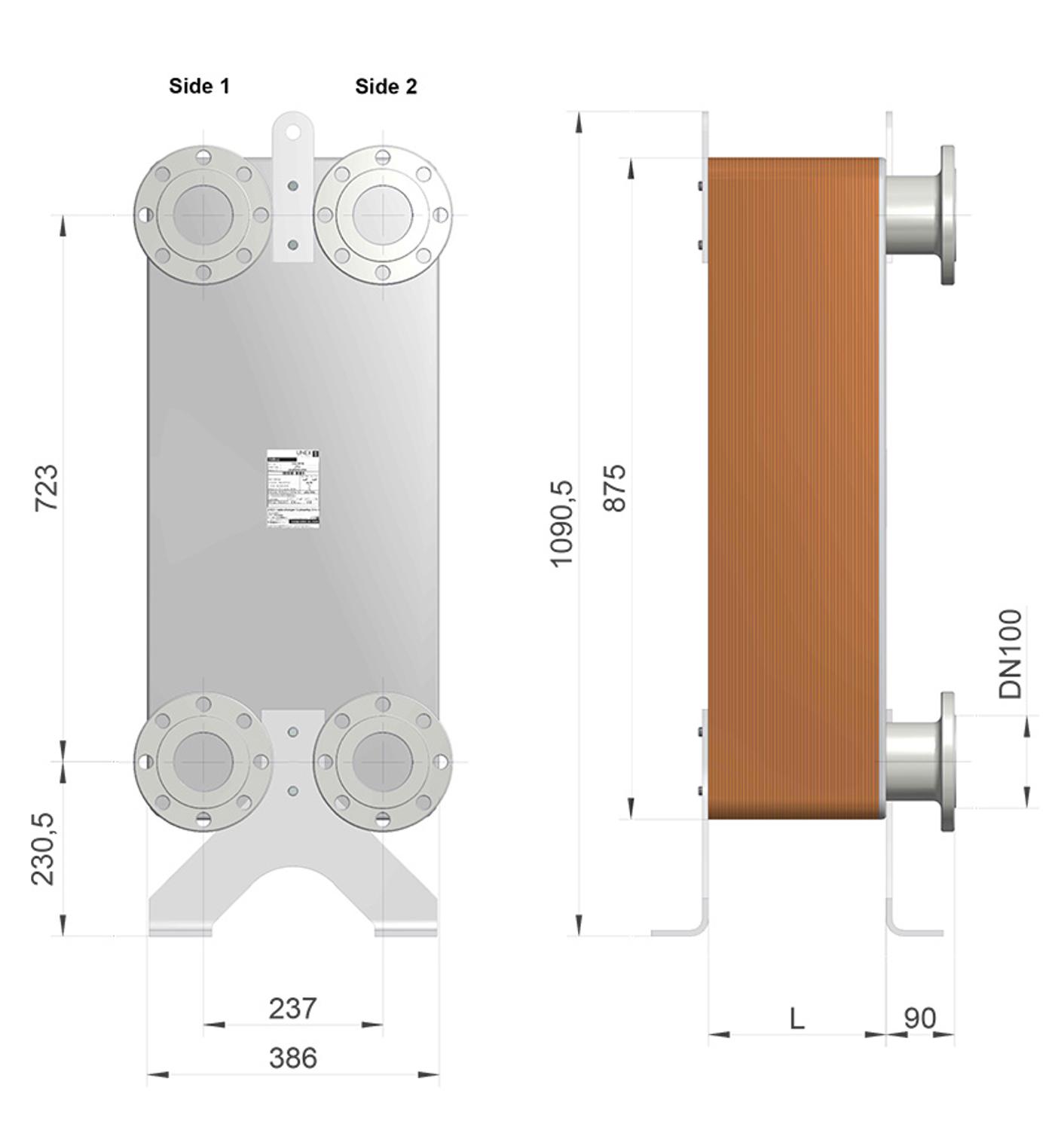

| L | 182.2 mm |
| Plattenmaterial | AISI316L |
| Typ der Lötverbindung | Kupfer |
