Eigenschaften
| Min./max. Betriebstemperatur (°C) | -195 / +195 |
| Produkt | gelöteter Wärmetauscher |
| Anzahl Platten | 20 |
| Anschlüsse | G3/4" |

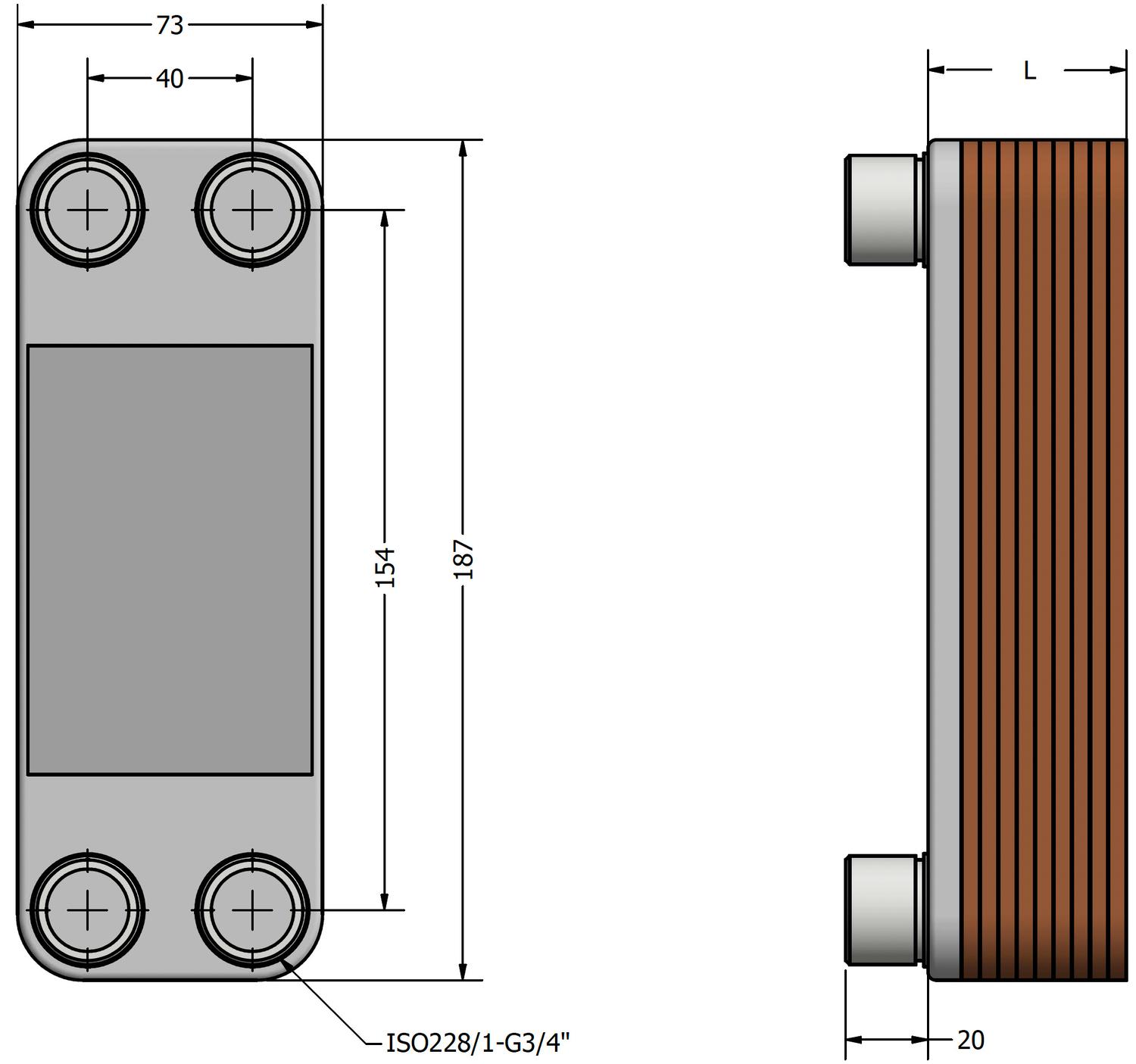

| Anschlussmittenabstand | 154*40 |
| Maximaler Betriebsdruck | 10 Bar |
| Typ | TS5 |
| Gewicht (kg) | 1.7 kg |
| Plattenmaterial | AISI316L |
| Typ der Lötverbindung | Kupfer |
