Eigenschaften
| Min./max. Betriebstemperatur (°C) | -195 / +195 |
| Produkt | gelöteter Wärmetauscher |
| Anzahl Platten | 14 |
| Anschlüsse | G3/4" |

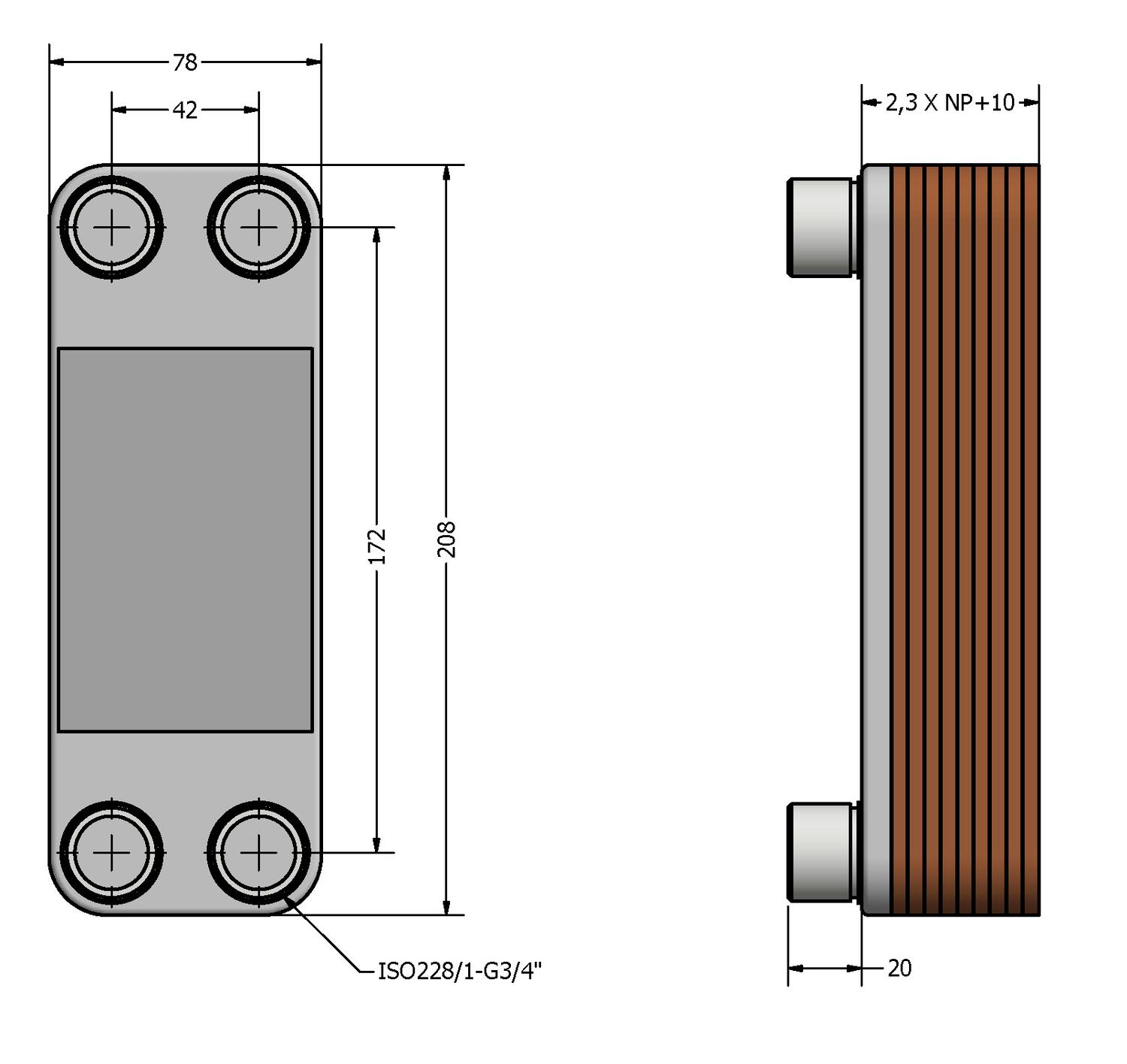

| Anschlussmittenabstand | 170*40 |
| Maximaler Betriebsdruck | 30 Bar |
| Typ | TS10 |
| Gewicht (kg) | 1.4 kg |
| Plattenmaterial | AISI316L |
| Typ der Lötverbindung | Kupfer |
